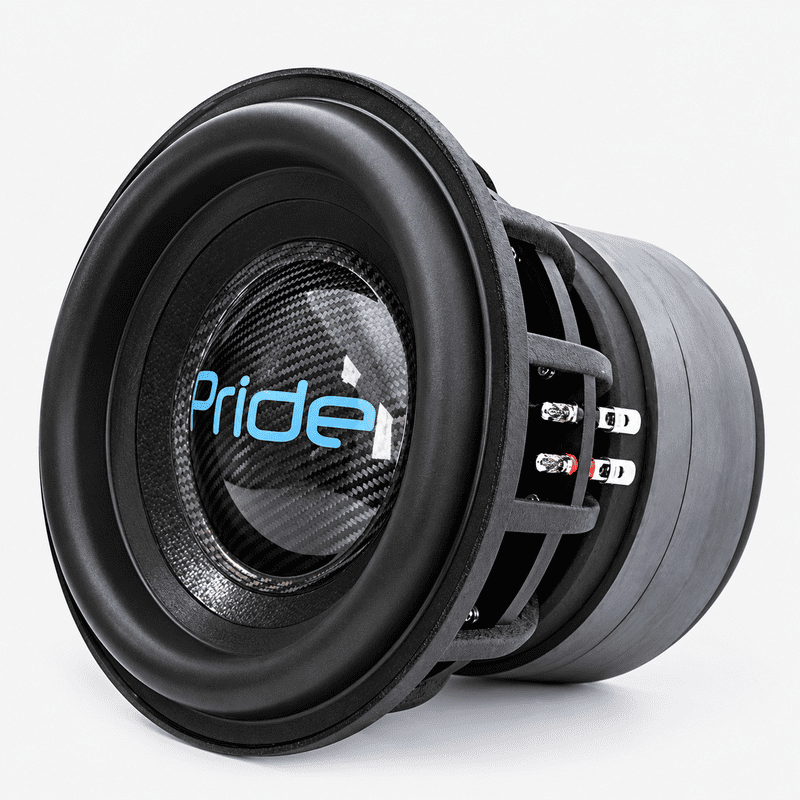

The Pride T v.3 12 D0.7 is a high-performance 30-cm subwoofer designed for demanding car audio and SPL applications. The third generation of the T Series combines high power handling with a powerful driver and a large linear cone excursion. With a power handling capacity of 2,500 watts RMS, the T v.3 12 offers enormous power reserves and is ideal for performance-oriented bass-reflex installations.

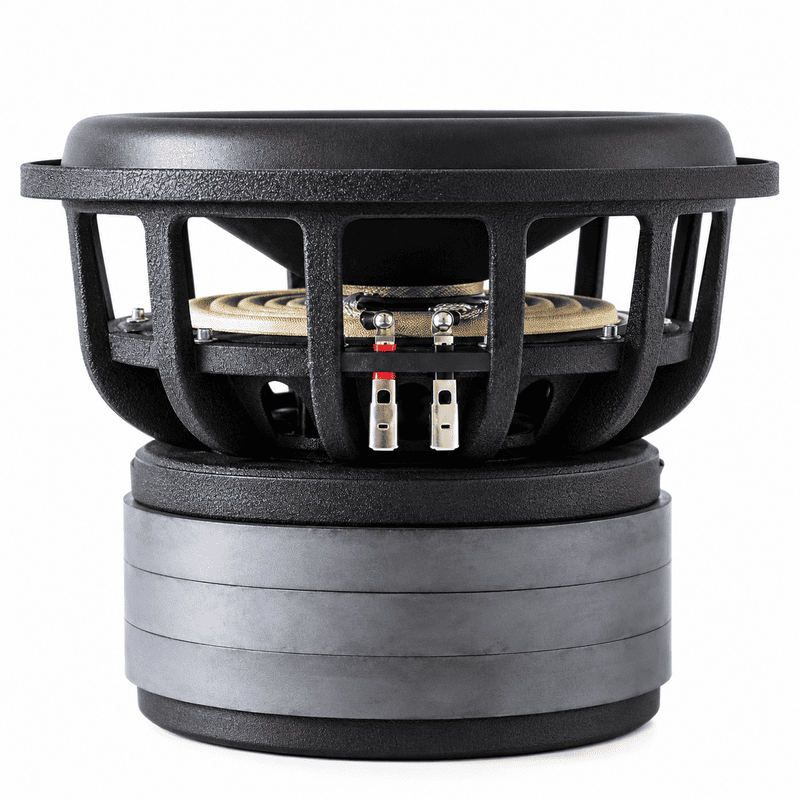

The solid ferrite magnet driver features a 3" (76.2 mm) high-temperature aluminum voice coil. Combined with the sturdy die-cast aluminum basket, this creates a robust design that is engineered to withstand even high continuous loads. A linear diaphragm excursion of 33 mm in one direction enables very high air displacement, resulting in powerful, impactful bass reproduction.

The D0.7 model features a low-impedance dual voice coil and is particularly well-suited for high-power monoblock power amplifiers and SPL-oriented systems.

Technical Specifications

Manufacturer: Pride
Model: T v.3 12 D0.7
Series: T, Vol. 3
Type: Subwoofer
Nominal diameter: 12" / 30 cm
Rated power handling: 2,500 watts RMS
Maximum power handling: approx. 5,000 watts
Voice Coil: Dual Voice Coil
Nominal impedance: 0.8 + 0.8 ohms
Model designation of the impedance variant: D0.7
Voice coil diameter: 3" / 76.2 mm
Voice coil material: aluminum
Voice Coil Type: High-Temperature Voice Coil
Magnetic material: Ferrite
Basket material: aluminum
Membrane material: cellulose
Sensitivity (1 W / 1 m): 87 dB
Sensitivity (2.83 Vrms / 1 m): 90.5 dB
Linear diaphragm stroke Xmax (BL 50%): 33 mm on one side
Effective membrane area (Sd): 515 cm²
DC resistance (Re): 3.3 ohms*
Resonance frequency (Fs): 30 Hz
Total quality (Qts): 0.26
Equivalent volume (Vas): 28.5 liters
Force factor (BL): 29.1 Tm*
Outer diameter: 315 mm
Installation diameter: 285 mm
Installation depth: 225 mm
Magnet diameter: 230 mm
Hole diameter: approx. 298 mm
Mounting holes: approx. 5.5 mm

What's Included

1x Pride T v.3 12 D0.7 Subwoofer (The logo color on the dust cap may vary)
