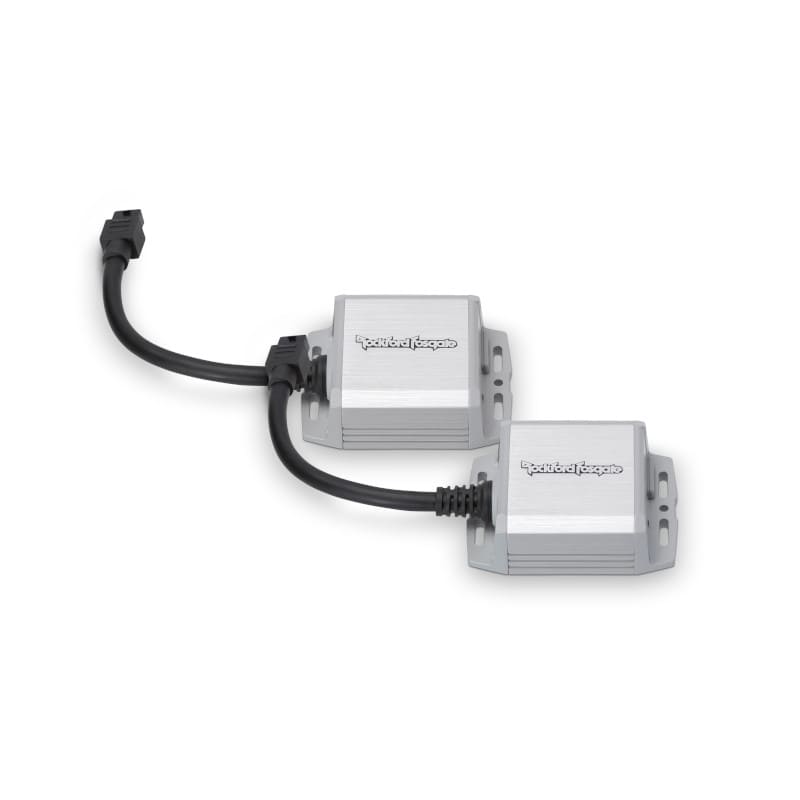

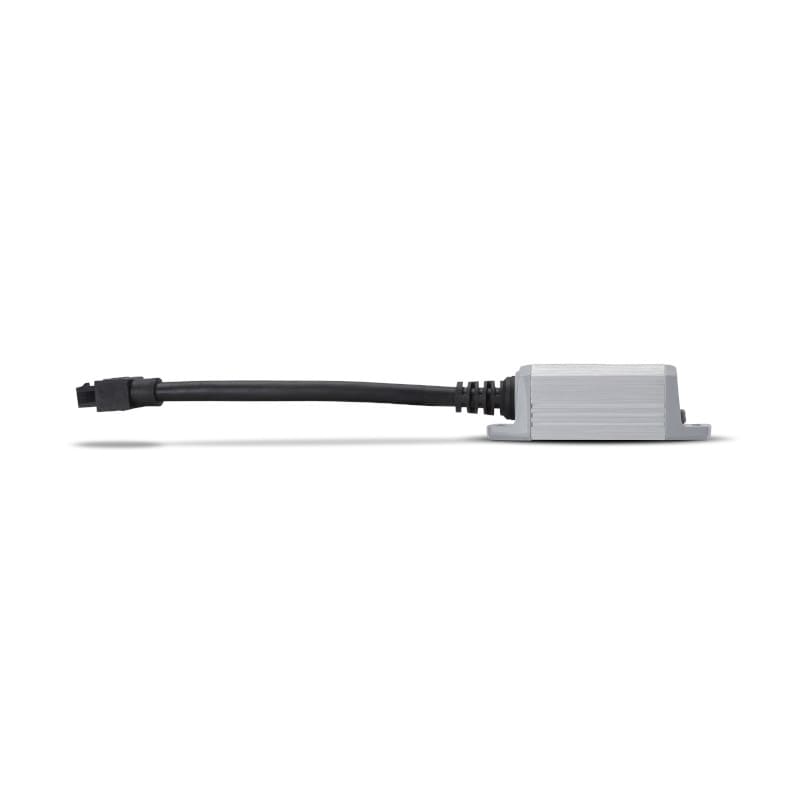

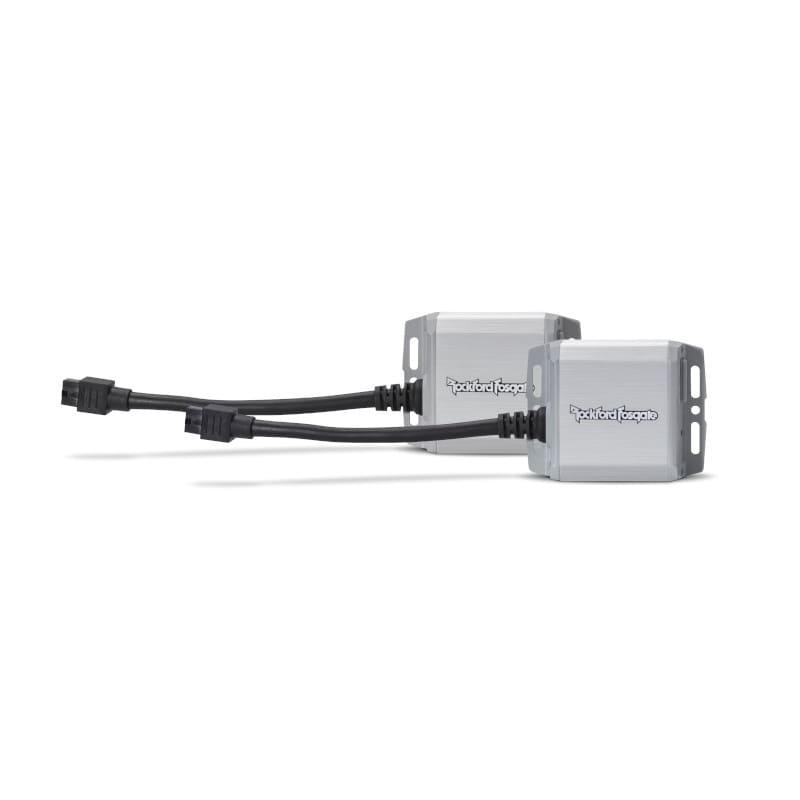

PM100X1K

The Rockford Fosgate PM100X1K is a compact amplifier set featuring two powerful single-channel amplifiers designed specifically for easily upgrading existing audio systems. Thanks to patented FreeLoad technology, the amplifiers utilize both the audio signal and the available electrical power from the existing speaker outputs. With compatible radios, this allows for operation without a separate power supply line.

Each amplifier delivers up to 100 watts RMS into 2 ohms, providing a significant increase in power compared to conventional radio outputs. Their exceptionally compact dimensions make it easy to install them discreetly right next to the speakers.

Thanks to its protective-coated circuit board and IPX6-rated water-resistant design, the PM100X1K set is suitable for use in vehicles as well as in marine and motorsports applications.

Technical Specifications

Amplifiers and Power

• Manufacturer: Rockford Fosgate

• Model: PM100X1K

• Series: Punch Marine

• Amplifier Type: FreeLoad Full-Range Mono Amplifier

• Number of amplifiers: 2

• Channels: 1 channel per amplifier

• Total number of channels: 2

• RMS power at 4 ohms: 2 x 60 watts

• RMS power at 2 ohms: 2 x 100 watts

• Dynamic power at 4 ohms: 2 x 61 watts

• Dynamic power at 2 ohms: 2 x 109 watts

• Minimum speaker impedance: 2 ohms

• Operating mode: Selectable between 2 and 4 ohms

• Bridgeable: No

• Frequency response: 60 Hz – 20,000 Hz (±1 dB)

• Total Harmonic Distortion plus Noise (THD+N): less than 1.0% at 2 and 4 ohms

• Performance specifications in accordance with CEA-2006



Crossover and Signal Processing

• Crossover: Integrated high-pass filter (HPF)

• High-pass frequencies: 60 / 80 / 100 Hz, switchable

• Filter slope: 12 dB/octave

• Filter characteristic: Butterworth

• Signal connection: High-level via speaker outputs

• Automatic Power-On: High-Level Auto Turn-On

• Power-On Behavior: Mute function to prevent power-on noises



Power Supply and Connections

• Operating voltage: 9–16 V DC

• Technology: Patented BTL FreeLoad Technology

• Power Supply: Via compatible BTL speaker outputs

• Separate power supply: Not required for compatible radios

• Optional B+ connection: For non-standard speaker outputs

• Current Limiting: Built-in to protect the radio output stage

• Connection Type: Cable Connections (Pigtail)

• Compatibility: Compatible OEM and aftermarket radios with BTL outputs



Housing and Protective Features

• Protection rating: IPX6

• Printed circuit board: Conformal coating

• Cooling: Passive via aluminum heat sink

• Overheating protection: Yes

• Short-circuit protection: Yes

• Surge protection: Yes

• Operating and Status Indicator: LED

• Housing material: Aluminum

• Case Color: Silver

• Height: 33 mm

• Width: 76.2 mm

• Depth: 99 mm

• Applications: Car Audio, Marine Audio, and Motorsports



Special Features

• Patented FreeLoad technology for using existing speaker outputs

• Up to 100 watts RMS per amplifier at 2 ohms

• No additional power cable is required for compatible BTL radio outputs

• Two separate mono amplifiers for the left and right speakers

• A particularly space-saving design

• Automatic activation via a high-level signal

• Adjustable high-pass filter with three cutoff frequencies

• IPX6 protection against powerful water jets

• Comprehensive electronic protection circuits

• Ideal for enhancing the performance of existing audio systems



What's Included

• 2 Rockford Fosgate PM100X1 mono amplifiers

• Connection cables with pigtail connectors

• Installation and Operating Instructions
