DLS Performance PE8.D2
Regular price
129,00€
Unit price
/
Unavailable

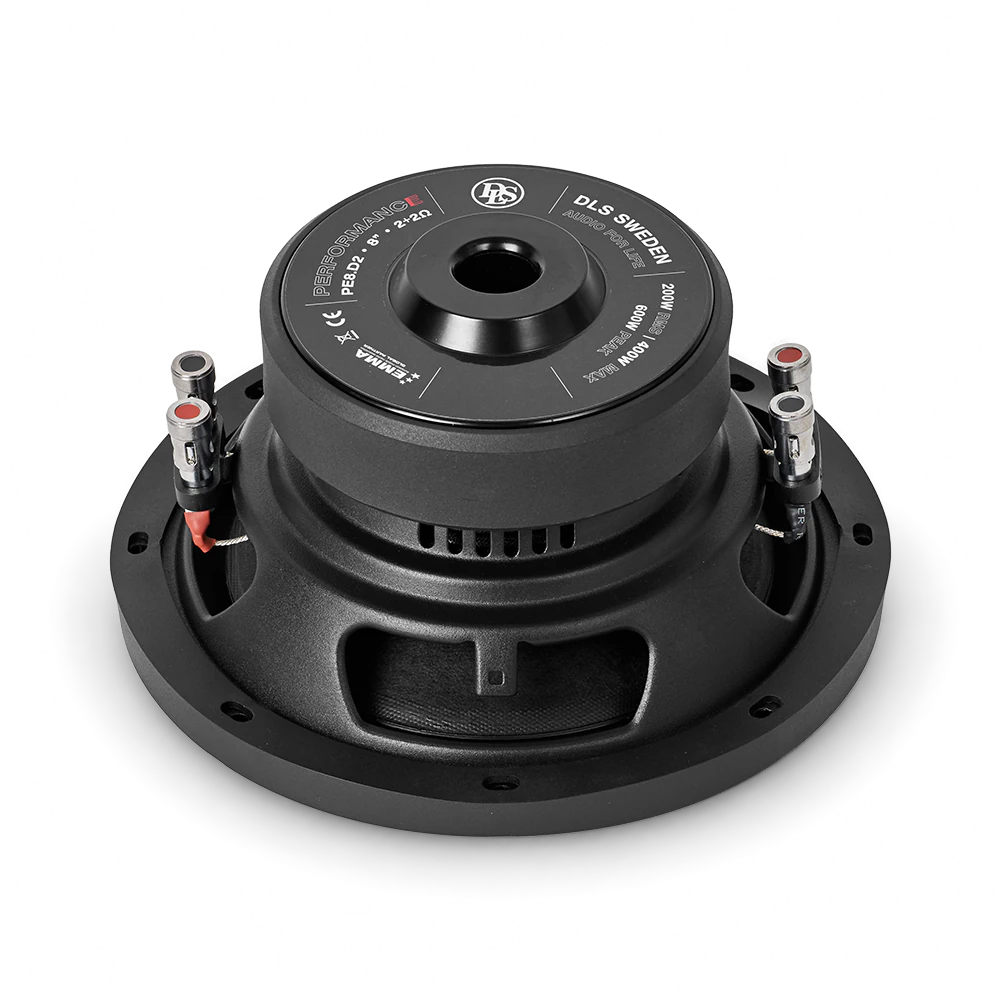

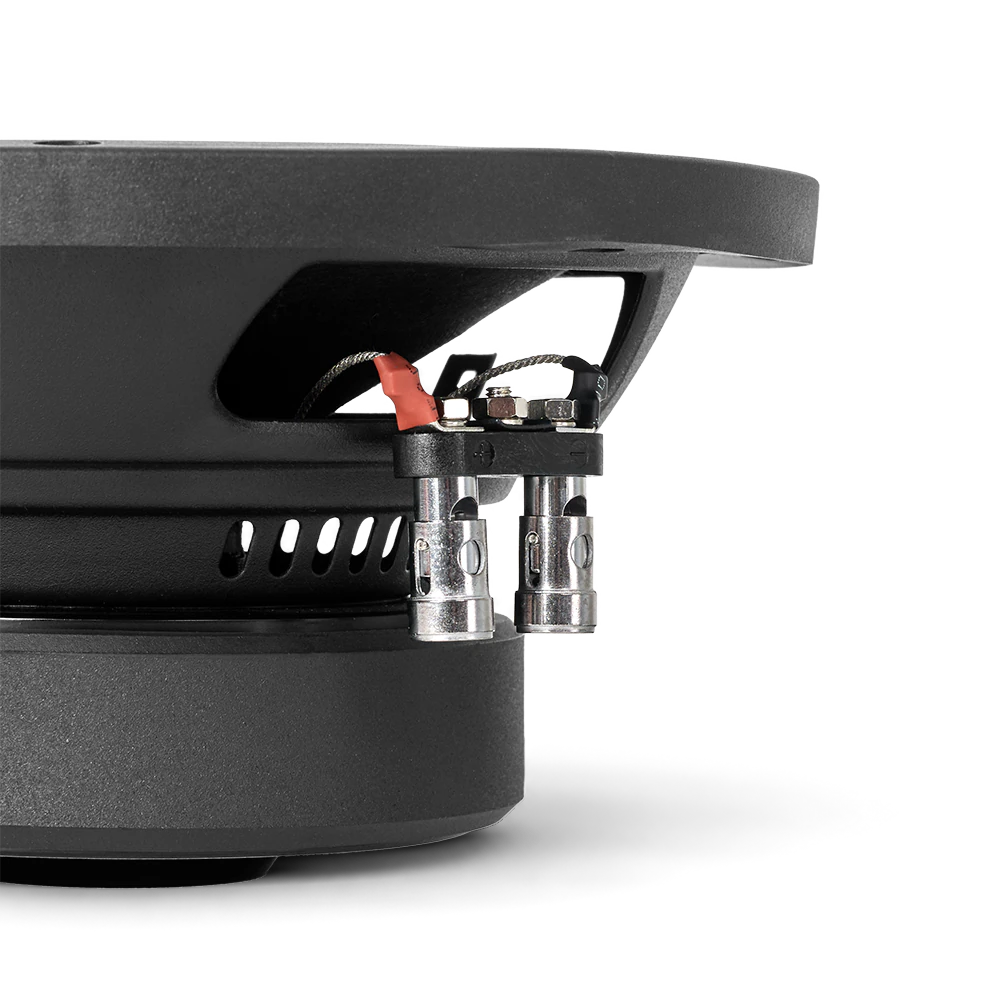

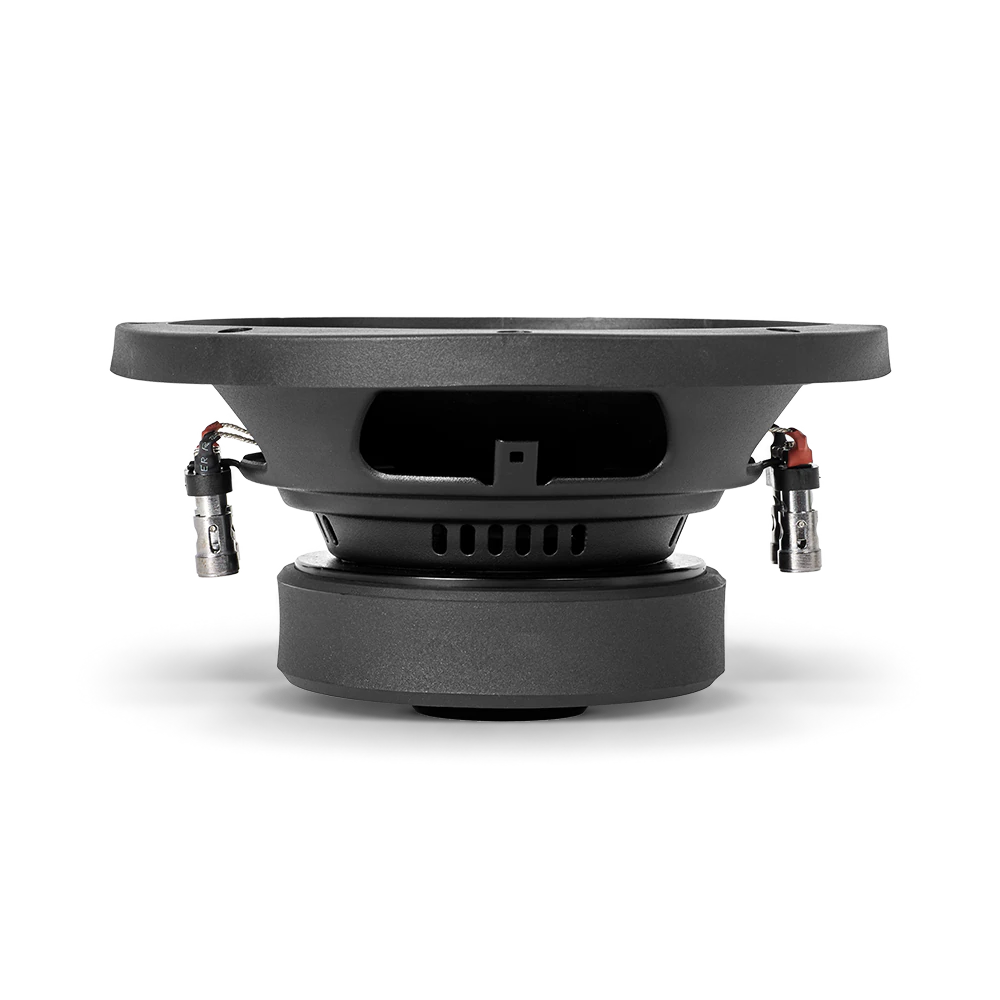

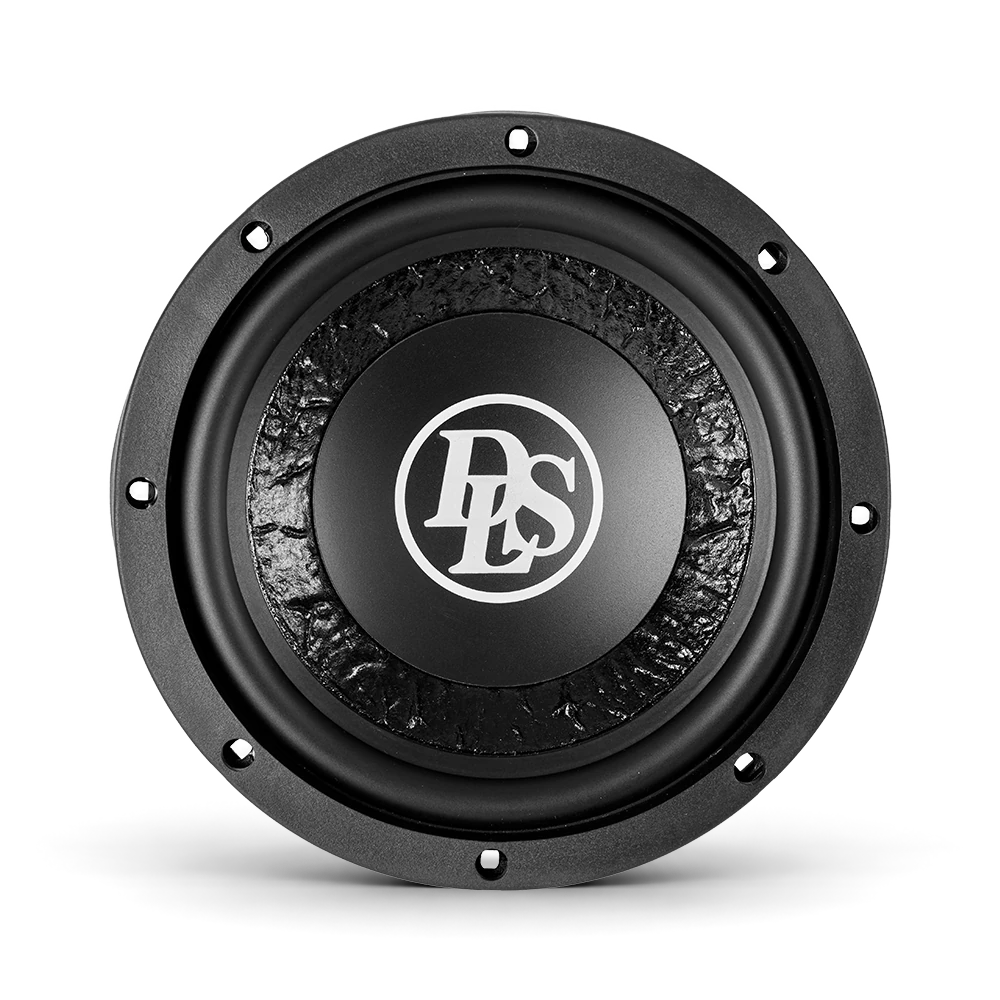

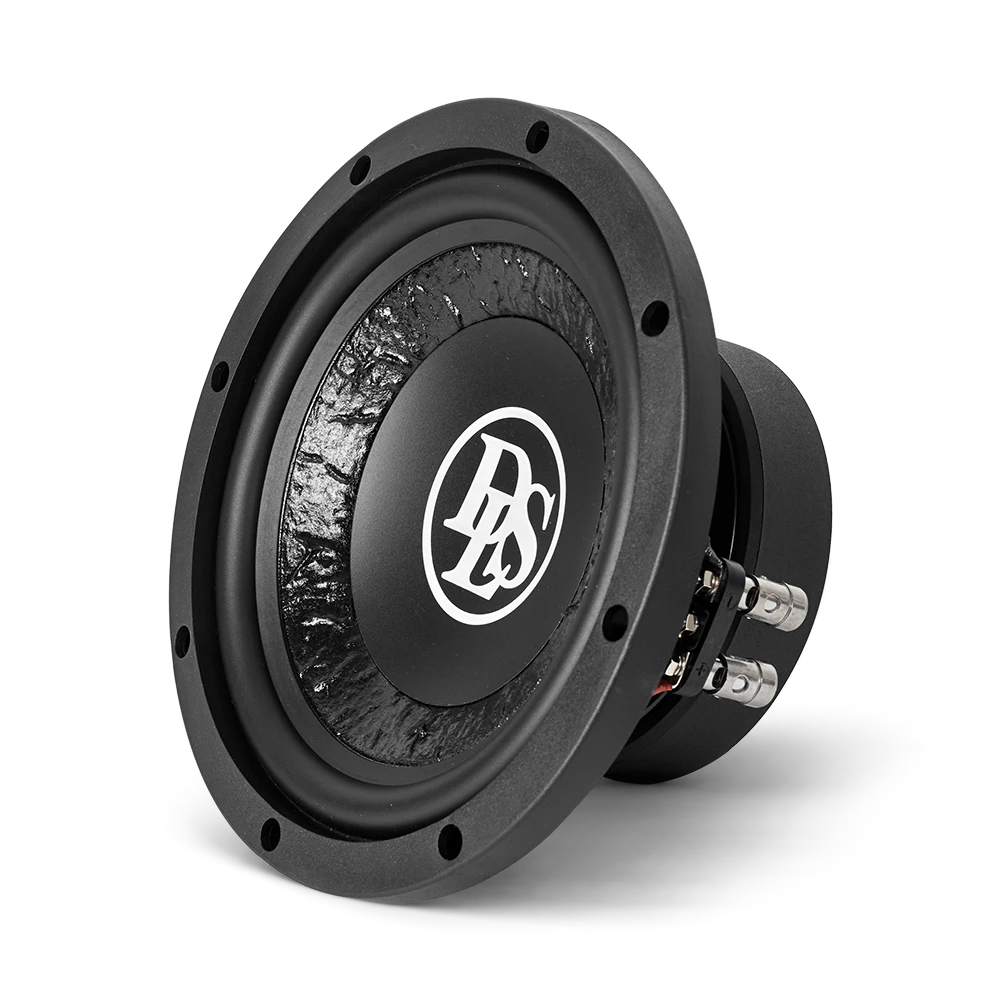

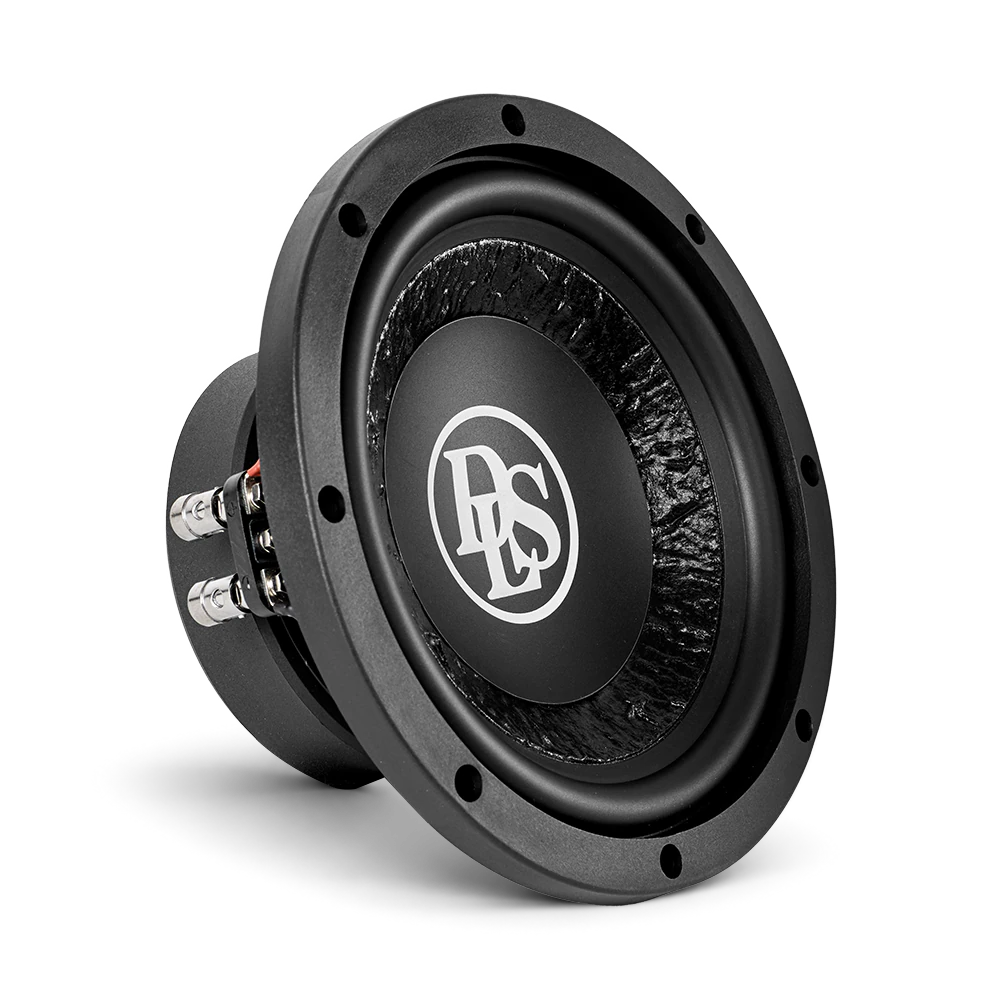

The DLS Performance PE8.D2 is a 200 mm (8") subwoofer designed specifically for use in compact, sealed enclosures. With its robust construction and impressive performance, it is ideal for vehicles with limited installation space, without sacrificing powerful bass reproduction.
The diaphragm is made of coated, non-pressed paper (NPP cone), which ensures precise, low-distortion sound reproduction. The subwoofer is powered by a powerful ferrite motor with a 38-ounce magnet and a 1.5-inch Kapton® voice coil with a 4-layer copper winding. The curved base plate allows for an extended excursion of ±9 mm, thereby providing a higher displacement volume despite the compact size.
A dual ventilation system, integrated into both the pole piece and the basket, ensures reliable heat dissipation. The sturdy steel basket guarantees a durable, low-resonance design. With a dual voice coil in a 2+2-ohm configuration, the PE8.D2 offers flexible connection options—whether wired in parallel at 1 ohm or in series at 4 ohms, the subwoofer can be optimally adapted to various amplifiers.
Technical Specifications:
- Size: 200 mm (8")
- Impedance: 2+2 ohms
- RMS Power Handling: 200 W
- Maximum Power Handling: 400 W
- Sensitivity: 85 dB
- Voice coil diameter: 38 mm (1.5")
- Voice coil material: 4-layer copper winding on a Kapton® carrier
- Magnet: 38 oz ferrite
- Frequency range: 25–300 Hz
- Resonance frequency (Fs): 33.2 Hz
- DC resistance (Re): 3.8 (1.9+1.9) ohms
- Mechanical Grade (Qms): 7.83
- Electrical quality (Qes): 0.51
- Total Quality (Qts): 0.48
- Elasticity (cm/N): 0.37 mm/N
- Moving mass (Mms): 62.2 g
- Strength Factor (Bl): 10.7
- Equivalent volume (Vas): 25.3 L
- Diaphragm area (Sd): 217.2 cm²
- Linear stroke (Xmax): ± 9 mm
- Displacement (Vd): 0.8 L
- Weight: 3.1 kg
Features:
- Coated NPP membrane (unpressed paper)
- Kapton® voice coil with 4-layer copper winding
- Powerful ferrite motor with a 38-ounce magnet
- Sturdy steel basket
- Curved base plate for extended stroke
- Dual ventilation in the core and basket for optimal heat dissipation
- Dual voice coil for flexible impedance matching
- Particularly suitable for small, enclosed housings
